Three Die Three Blow Bolt Forming Machine

Using pneumatic air clutch to start the current, brake smoothly, except to move the slider or the outside could stop time to stop after the death, to provide maximum room for maneuver.

Description of Three Die Three Blow Bolt Forming Machine

Machine Use And Characteristic:

ShineTop 3 station series:

STBF-24B3S, STBF-30B3S, STBF-33B3S, STBF- 36B3S, STBF-41B3S, STBF-45B3S

Forging station 3

Max cutoff dia from 9mm to 40mm

Max cutoff length from 70mm to 450mm

Max output 180pcs/minute to 40pcs/minute

Our Service:

● Our factory will provide good quality machine with reasonable price and best after sales service.

● We check the raw material before starting production of the bolt forging machine.

● Testing products and send videos to make sure the quality.

● Make the 100% inspection before the shipments.

● Guarantee time one year.

Our Advantage:

● We have been engaged in bolt forging machine for more than 10 years.

● We have experienced engineers and technicians.

● We have practical experience, advanced technology, and complete product line.

Packing:

Seaworthy export standard packing

Packing of Three Die Three Blow Bolt Forming Machine

FAQ：

Q: Why choose the bolt forging machine?

A: less cutting process saves raw materials and fully automatic reduce labor cost and repeated investment of other machine tools.

Q: What kind of materials it can use?

A:The forging process is suitable for iron, copper, stainless steel,alloy steel,aluminum and other materials.

Q: How to make order?
A: 1. Please tell me the model of machine or send me the drawings of your product, I can suggest the suitable machine for you.
2. We make Proforma Invoice for you.
3. Checking and confirm the invoice.
4. 30% deposit,70% balance before delivery.

Price: The price is changing because of material cost and exchange rate. Please give me your contact information, I will update the newest price to you.

Hot Tags: bolt forging machine, China, suppliers, manufacturers, factory, customized, wholesale, buy, price, for sale, High Speed Rivet Punching Machine, Rivet Making Machine, Bolt Former Machine, Bolt Former, Fully Automatic Screw Making Machine, Automatic Bolt Making Machine.

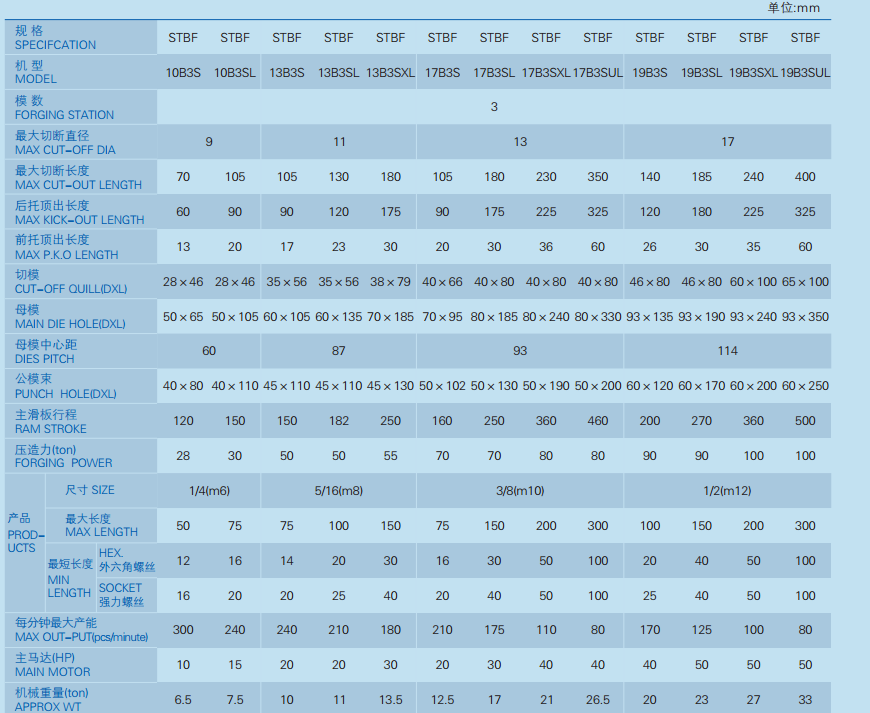

Three Die Three Blow Bolt Forming Machine Specifcation

SPECIFICATION/MODEL			STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF
SPECIFICATION/MODEL			10B3S	10B3SL	13B3S	13B3SL	13B3SXL	17B3S	17B3SL	17B3SXL	17B3SUL	19B3S	19B3SL	19B3SXL	19B3SUL
FORGING STATION			3
CUT-OFF DIA.MAX. （mm)			8		10			12				16
CUT-OUT LENGTH MAX.（mm)			70	105	105	130	180	135	180	230	350	140	185	240	400
KICK-OUT LENGTH MAX.(mm)			60	90	90	120	175	115	175	225	325	120	180	225	325
P.K.O.LENGTH MAX.(mm)			13	20	20	23	30	20	30	36	60	26	30	35	60
CUT-OFF QUILL(D×L) (mm)			28×46	28×46	35×56	35×56	38×79	40×66	40×80	40×80	40×80	46×80	46×80	60×100	60×100
MAIN DIE HOLE (D×L(mm)			50×65	50×105	60×105	60×130	70×185	70×135	80×185	80×240	80×330	93×135	93×190	93×240	93×350
DIES PITCH (mm)			60		87			93				114
PUNCH HOLE (D×L) (mm)			40×80	40×110	45×110	45×110	45×130	50×111	50×130	50×190	50×200	60×120	60×170	60×200	60×250
RAM STROKE(mm)			120	150	150	182	250	180	250	360	460	200	270	360	500
FORGING POWER(ton)			40	40	65	65	70	85	85	90	90	120	120	130	130
PRODUCTS	SIZE		1/4(m6)		5/16(m8）			3/8(m10)				1/2(m12)
	MAX.LENGTH (mm)		50	75	75	100	150	100	150	200	300	100	150	200	300
	MIN.LENGTH (mm)	HEX.	12	16	16	20	30	16	30	50	100	20	40	50	100
	MIN.LENGTH (mm)	SOCKET	16	20	20	25	40	20	40	50	100	25	40	50	100
MAX.OUTPUT(pcs/minute)			300	240	240	200	180	200	175	110	80	170	125	100	80
MAIN MOTOR(HP)			15	15	20	30	30	30	40	40	40	50	50	50	50
APPROX.WT. （ton)			6.5	7.5	10	11	13.5	13.5	17	21	26.5	20	23	27	33
	M		3.5×1.9×1.7	4×1.9×1.7	3.9×2.2×2	4.2×2.2×2	4.5×2.3×2.2	4.22.62	4.82.62.3	5.52.62.3	6.52.62.4	5.42.72.2	62.72.2	6.52.72.3	7.52.72.7
·WE RESERVE THE RIGHT TO CHANGE THE DESIGNS & SPECIFICATIONS WITHOUT NOTICE.
·PRODUCTION CAPACITY DEPENDS ON APPLICABLE PRODCTS,MATERIAL,TENSILE STRENGTH OF THE WINR.
·THE KICK-OUT STROKE IN BRACKET SHOWS THE MAX. LENGTH OF THE PRODUCT ALLOWED FOR ROTATIONAL TRANSFER.

SPECIFICATION/MODEL			STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF
SPECIFICATION/MODEL			24B3S	24B3SL	24B3SXL	24B3SUL	30B3S	36B3S	41B3S	45B3S
FORGING STATION			3
CUT-OFF DIA.MAX.（mm)			20				24	30	36	40
CUT-OUT LENGTH MAX.(mm)			185	270	320	400	270	320	400	450
KICK-OUT LENGTH MAX.(mm)			185	230	280	335	230	290	340	390
P.K.O.LENGTH MAX.（mm)			33	36	50	60	35	60	60	70
CUT-OFF QUILL(D×L)(mm)			60×100	60×120	60×120	60×120	75×120	90*140	110×140	115×140
MAIN DIE HOLE (D×L (mm)			100×195	100×240	100×294	100×360	125×240	160×294	178×385	195×420
DIES PITCH (mm)			126				138	174	195	210
PUNCH HOLE (D×L) (mm)			75×160	75×200	75×232	75×232	90×190	105×232	120×250	135×280
RAM STROKE (mm)			280	360	420	500	360	440	500	580
FORGING POWER (ton)			200	200	215	215	265	380	520	635
PRODUCTS	SIZE		5/8(m16)				3/4(m20)	1(m24)	1-1/8(m27)	1-1/4(m30)
	MAX.LENGTH (mm)		150	200	250	300	200	250	300	355
	MIN.LENGTH (mm)	HEX.	25	50	60	100	40	60	100	100
	MIN.LENGTH (mm)	SOCKET	35	50	60	100	40	60	100	100
MAX.OUTPUT(pcs/minute)			120	100	75	65	90	60	45	40-45
MAIN MOTOR(HP)			75	75	100	100	100	125	175	200
APPROX.WT.（ton)			39	44	48	54	57	108	152	195
M			7.5×3.2×2.6	8.5×3.2×2.6	9×3.2×2.8	10×3.2×2.9	9×3.4×2.9	9.5×3.5×3	11×3.8×3.3	13×4.2×3.6
·WE RESERVE THE RIGHT TO CHANGE THE DESIGNS & SPECIFICATIONS WITHOUT NOTICE.
·PRODUCTION CAPACITY DEPENDS ON APPLICABLE PRODCTS,MATERIAL,TENSILE STRENGTH OF THE WINR.
·THE KICK-OUT STROKE IN BRACKET SHOWS THE MAX. LENGTH OF THE PRODUCT ALLOWED FOR ROTATIONAL TRANSFER.

Products

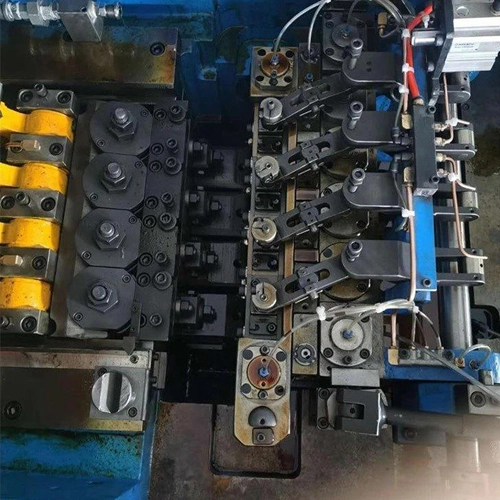

Key Features of Three Die Three Blow Bolt Forming Machine

Key Features1

Key Features2

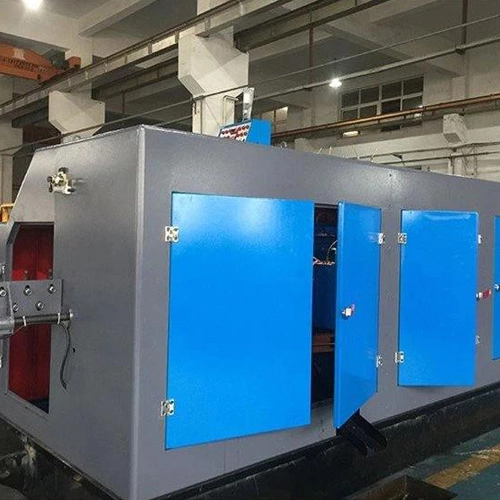

1. Embedded oil-free self-lubricating bearing can effectively improve the service life and wear resistance of connecting shaft and reduce energy consumption.
