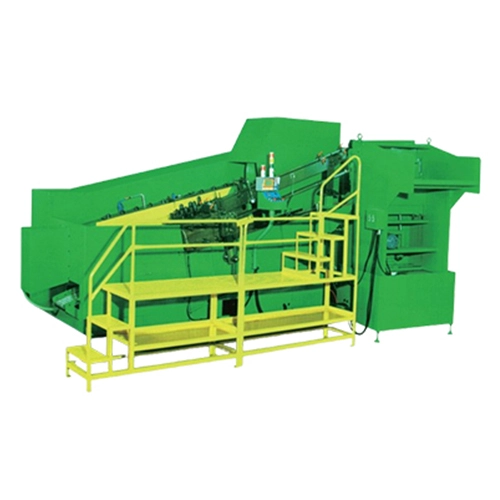

The ST-90S High-Speed Thread Rolling Machine is designed for versatility and high performance. It accommodates a diameter range of 16 to 30 mm and can handle a maximum thread length of 150 mm, extendable to 200 mm. Ideal for demanding industrial applications, this machine ensures precise and efficient threading, making it a valuable asset for high-volume production.
Model | ST-90S |
Diameter Range (mm) | 16~30 |
Max Thread Length (mm) | 150 (200) |
Moving Dies Stationary Length (mm) | 400x450x50 |
Height Of Diepocket (mm) | 210 |
Motor (kw) | 45-6 |
Capacity | 30-50 |
Packing Volume (mm) | 5700x3700x2900 |
Net Weight (kg) | 17500 |
Note: Layer hopper and vibrator are optional parts.
