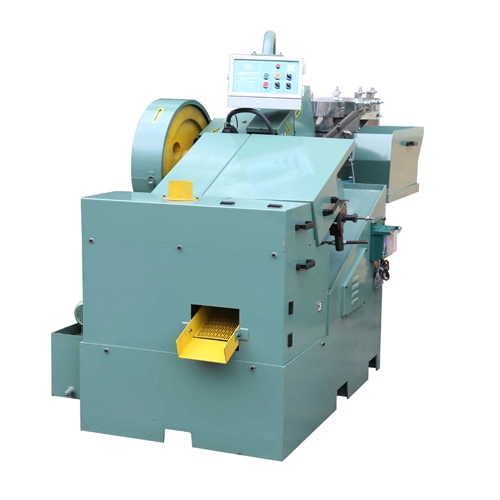

The ST-8R-83(120) High-Speed Thread Rolling Machine excels in precision threading for diameters Φ4.0 to 8.0 mm and lengths up to 83 (100) mm. Delivering 160-240 pieces per minute, it features durable die dimensions and a robust 7.5-4 kW main motor. Weighing 2700 kg and measuring 2470x1300x1800 mm, this machine is built for high-performance industrial applications.
Model | ST-8R-83 (120) |
Thread Dia (mm) | Φ4.0~8.0 |
Thread Length (mm) | 83 (100) |
Output Per Min | 160~240 |
Die Dimensions (mm) | 127(140) x25x83 (120) Height |
Main Motor (kw) | 7.5-4 |
Pumpr Motor (kw) | |
Net Weight (kg) | 2700 |
Dimensions (mm) | 2470x1300x1800 |
Note: Rotary hopper and vibrator are optional parts.
