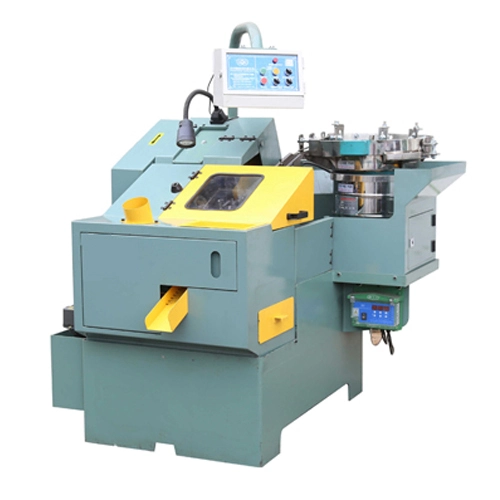

The ST-6R-80 High-Speed Thread Rolling Machine is engineered for precision threading of diameters φ3.0 to 6.0 mm and lengths up to 80 mm. With an output of 220-290 pieces per minute, it features robust die dimensions and a powerful 5.5-4 kW main motor. Weighing 1600 kg and measuring 1800x1600x1700 mm, it is ideal for high-efficiency industrial use.
Model | ST-6R-80 |
Thread Dia (mm) | φ3.0~6.0 |
Thread Length (mm) | 80 |
Output Per Min | 220~290 |
Die Dimensions (mm) | 100( 115) x25x80 Height |
Main Motor (kw) | 5.5-4 |
Pumpr Motor (kw) | 0.37 |
Net Weight (kg) | 1600 |
Dimensions (mm) | 1800x1600x1700 |
Note: Rotary hopper and vibrator are optional parts.
