Six Die Six Blow Bolt Parts Forming Machine

The main action mechanism (cutting, die pushing, feeding, etc.) of the bolt former is driven by connecting rod, which can meet the requirements of large disk round feeding and thread rolling mechanism, and realize the automatic production of bolts and screws from cutting, upsetting to thread rolling.

Description of Six Die Six Blow Bolt Parts Forming Machine

Products Feature:

The main action mechanism (cutting, die pushing, feeding, etc.) of the bolt former is driven by connecting rod. it connected large disk round feeding and thread rolling machine, and work automatically to produce bolts and screws from cutting, upsetting to thread rolling.

Using pneumatic air clutch to start the current, brake smoothly, to provide maximum room for maneuver.

Shinetop 4 station series:

STBF-24B4S, STBF-30B4S, STBF-33B4S, STBF-36B4S, STBF-41B4S, STBF-45B4S

Our Service:

● Our factory provide intelligent high speed bolt former.

● We choose imported frequency converter to produce products with economical cost and effectively.

● The PLC control system of automatic bolt former is easy operate.easy repaired, set and modfied.

● We choose Japan SMC clutch solenoid valve and Germany FTO small solenoid valve.

Our Advantage:

● Beam lifting pentahedron machining center of ShineTop bolt former can forms on machine bed by one step.

● Gantry machining center to make sure the machining accuracy within 0.05mm. processing machine bed is up to M36mm.

● Schneider PLC control system.

● Japan Tohatsu Spring.

Packing:

Seaworthy export standard packing

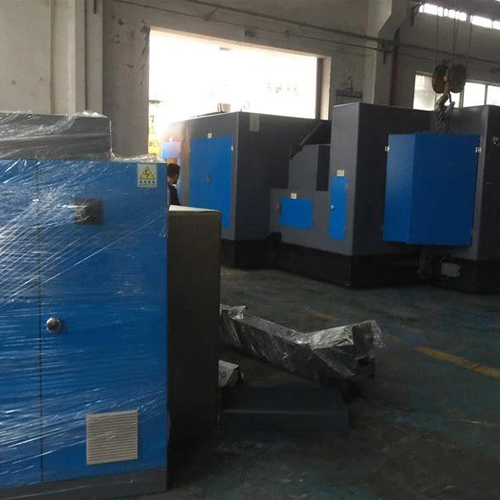

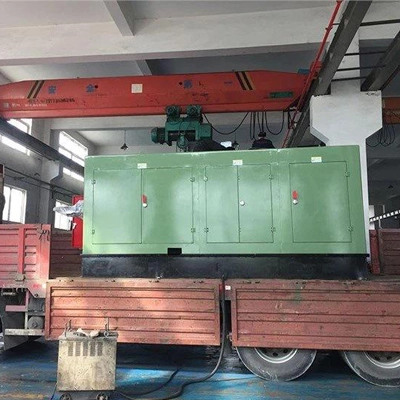

Packing of Six Die Six Blow Bolt Parts Forming Machine

FAQ：

Q: Can the bolt former produce fasteners?

A: Yes,it can produce different kind of fasteners used in aerospace, railway, shipping, automobile, wind power and other industry.

Q: Do you have 5 station high speed bolt former ?

A: yes. Our factory can produce 5station bolt former from M6 to M30, length 8mm to 355mm.

Q: what is the payment term of the bolt former?
A: 30% deposit and 70% should be paid before shipping.

Price: The price is changing because of material cost and exchange rate. Please give me your contact information, I will update the newest price to you.

Hot Tags: bolt former, China, suppliers, manufacturers, factory, customized, wholesale, buy, price, for sale, Bolt And Nut Machine, Rivet Manufacturing Machine, Bolt Forming Machine, Easy Operation Nail Machine, Bolt Former, Easy Operation Cold Forging Machine.

Previous: Bolt Former Machine.

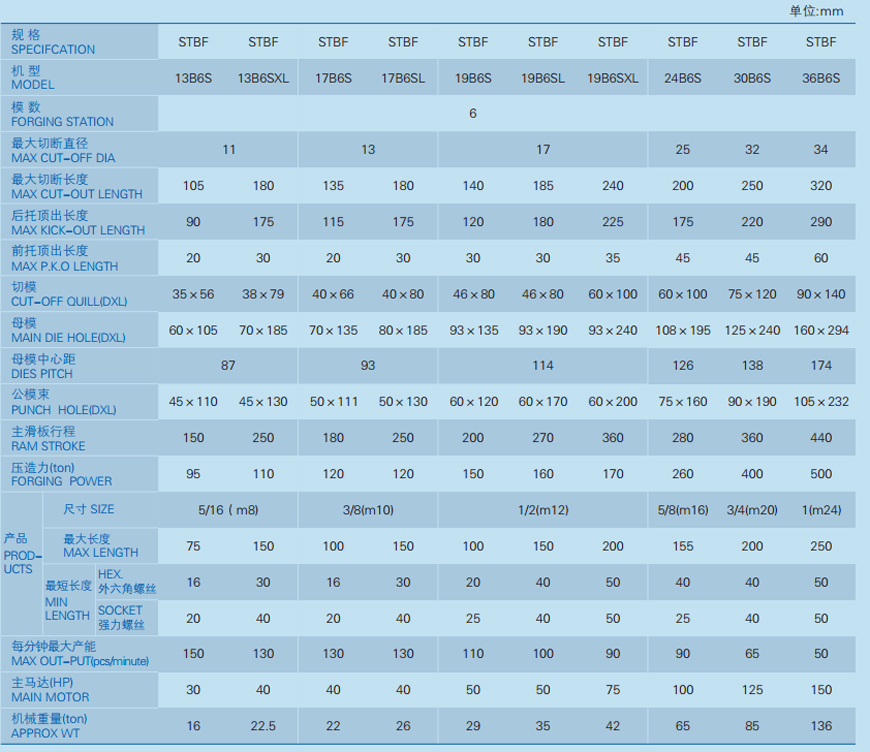

Six Die Six Blow Bolt Parts Forming Machine Specifcation

SPECIFICATION/MODEL			STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF
SPECIFICATION/MODEL			13B6S	13B6SXL	17B6S	17B6SL	19B6S	19B6SL	19B6SXL	24B6S	30B6S	36B6S
FORGING STATION			6
CUT-OFF DIA.MAX. (mm)			11		13		17			25	32	34
CUT-OUT LENGTH MAX. (mm)			105	180	135	180	140	185	240	200	250	320
KICK-OUT LENGTH MAX. (mm)			90	175	115	175	120	180	225	175	220	290
P.K.O.LENGTH MAX. (mm)			20	30	20	30	30	30	35	45	45	60
CUT-OFF QUILL (D×L) (mm)			35×56	38×79	40×66	40×80	46×80	46×80	60×100	60×100	75×120	90×140
MAIN DIE HOLE (D×L (mm)			60×105	70×185	70×135	80×185	93×135	93×190	93×240	108×195	125×240	160×294
DIES PITCH(mm)			87		93		114			126	138	174
PUNCH HOLE (D×L) (mm)			45×110	45×130	50×111	50×130	60×120	60×170	60×200	75×160	90×190	105×232
RAM STROKE (mm)			150	250	180	250	200	270	360	280	360	440
FORGING POWER (ton)			95	110	120	120	150	160	170	260	400	500
PRODUCTS	SIZE		5/16 (m8)		3/8 (m10)		1/2 (m12)			5/8 (M16)	3/4 (M20)	1 (M24)
	MAX.LENGTH (mm)		75	150	100	150	100	150	200	155	200	250
	MIN.LENGTH (mm)	HEX.	16	30	16	30	20	40	50	40	40	50
	MIN.LENGTH (mm)	SOCKET	20	40	20	40	25	40	50	25	40	50
MAX.OUTPUT(pcs/minute)			150	130	130	130	110	100	90	90	65	50
MAIN MOTOR (HP)			30	40	40	40	50	50	75	100	125	150
APPROX.WT. (ton)			16	22.5	22	26	29	35	42	65	85	136
·WE RESERVE THE RIGHT TO CHANGE THE DESIGNS & SPECIFICATIONS WITHOUT NOTICE.
·PRODUCTION CAPACITY DEPENDS ON APPLICABLE PRODCTS,MATERIAL,TENSILE STRENGTH OF THE WINR.
