Four Die Four Blow Bolt Forming Machine

Bolt manufacturing machine is a king of forming machine with high production efficiency, large productiong range,and complex deformation,which integrates upsetting,extrusion and trimming.

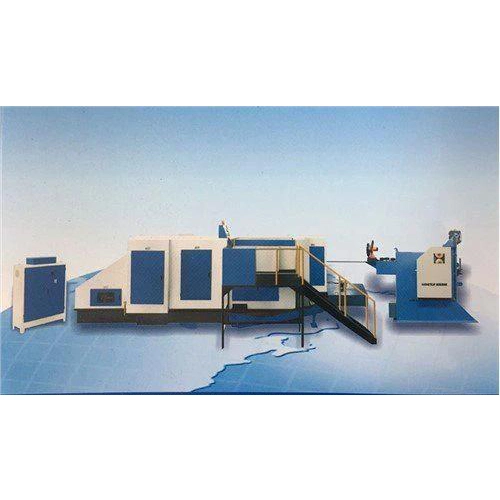

Description of Four Die Four Blow Bolt Forming Machine

Products Feature:

bolt manufacturing machine is a king of forming machine with high production efficiency, large productiong range,and complex deformation,which integrates upsetting,extrusion and trimming.

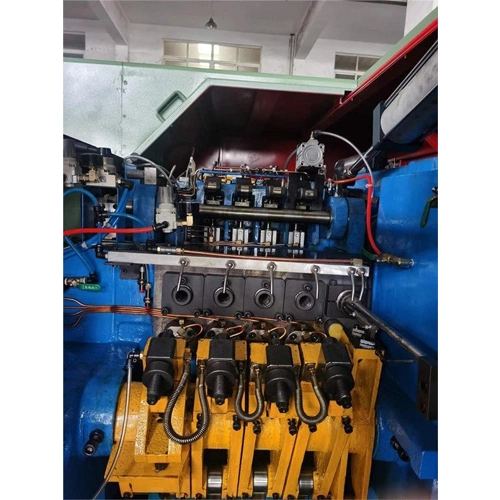

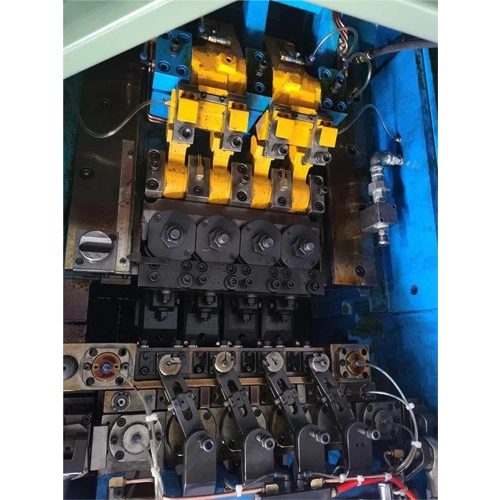

Pneumatic clamping, quick adjustment of clamping centrality,simple and stable operation, can change the flipped clamping mechanism.(with option)

ShineTop 4 station series :

STBF-10B4S 50mm, STBF-13B4S 80mm, STBF-17B4S 100mm, STBF-19B4S 100mm

Our Service:

● our factory choose good raw materials for the automatic nut bolt manufacturing machine,experienced engineers and technicians, advanced product line to ensure the good quality.

● High speed automatic bolt manufacturing machine can produce variety of screws and bolts.

● Installation and technical support.

Our Advantage:

● The operation platform can detect the cutting length in real time, and detect the short materials data of on-line production with the accuracy of 0.01mm, so that the accuracy of the product has been greatly improved.

● The operation platform monitors and displays the parking position of the machine in the whole process, which changes the working principle of the traditional inching shunting.

Packing:

Seaworthy export standard packing

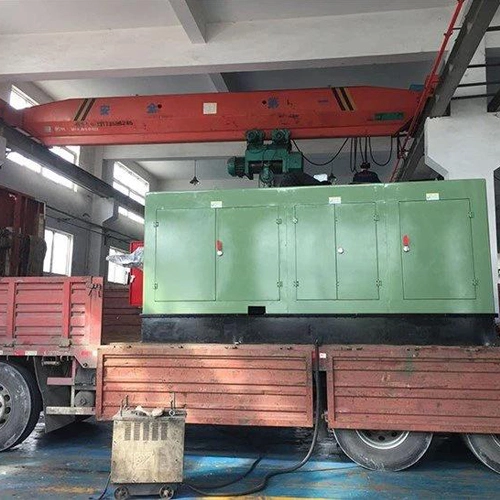

Packing of Four Die Four Blow Bolt Forming Machine

FAQ：

Q: Does the bolt manufacturing machine automatically stop if achieve the pre-set quantity?

A: Yes.it stops automatically.

Q: What kind of products does the bolt manufacturing machine produce?

A: Inside and outside hexagon bolt and screws. Hollow solid special shaped parts

Q: Does is testing before shipping?
A: Yes.

Price: The price is changing because of material cost and exchange rate. Please give me your contact information, I will update the newest price to you.

Hot Tags: automatic nut bolt manufacturing machine, China, suppliers, manufacturers, factory, customized, wholesale, buy, price, for sale, Rivet Making Machine, Allen Head Screw Making Machine, Bolt And Nut Machine, Fasteners Making Machine, Screw Fastening Machine, Bolt Making Machine.

Four Die Four Blow Bolt Forming Machine Specifcation

SPECIFICATION/MODEL			STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF
SPECIFICATION/MODEL			10B4S	10B4SL	13B4S	13B4SL	13B4SXL	13B4SUL	17B4S	17B4SL	17B4SXL	17B4SUL	19B4S	19B4SL	19B4SXL	19B4SUL
FORGING STATION			4
CUT-OFF DIA.MAX.（mm)			9		11				13				17
CUT-OUT LENGTH MAX.（mm)			70	105	105	130	180	220	135	180	230	350	140	185	240	400
KICK-OUT LENGTH MAX.(mm)			60	90	90	120	175	215	115	175	225	325	120	180	225	325
P.K.O.LENGTH MAX. （mm)			13	20	20	23	30	34	20	30	36	60	26	30	35	60
CUT-OFF QUILL(D×L) (mm)			28×46	28×46	35×56	35×56	38×79	38×79	40×66	40×80	40×80	40×80	46×80	46×80	60×100	60×100
MAIN DIE HOLE (D×L (mm)			50×65	50×105	60×105	60×130	70×185	70×240	70×135	80×185	80×240	80×330	93×135	93×190	93×240	93×350
DIES PITCH (mm)			60		87				93				114
PUNCH HOLE (D×L) (mm)			40×80	40×110	45×110	45×110	45×130	45×175	50×111	50×130	50×190	50×200	60×120	60×170	60×200	60×250
RAM STROKE(mm)			120	150	150	182	250	350	180	250	360	460	200	270	360	500
FORGING POWER (ton)			40	40	65	65	70	70	85	85	90	90	120	120	130	130
PRODUCTS	SIZE		1/4(m6)		5/16(m8）				3/8(m10)				1/2(m12)
	MAX.LENGTH (mm)		50	75	75	100	150	200	100	150	200	300	100	150	200	300
	MIN.LENGTH (mm)	HEX.	12	16	16	20	30	40	16	30	50	100	20	40	50	100
	MIN.LENGTH (mm)	SOCKET	16	20	20	25	40	40	20	40	50	100	25	40	50	100
MAX.OUTPUT (pcs/minute)			300	240	240	200	180	140	200	175	110	80	170	125	100	80
MAIN MOTOR (HP)			15	15	20	30	30	30	30	40	40	40	50	50	50	50
APPROX.WT. (ton)			8	10	12	13.5	15.5	19.5	16	19	24	29	23	27	32	39
·WE RESERVE THE RIGHT TO CHANGE THE DESIGNS & SPECIFICATIONS WITHOUT NOTICE.
·PRODUCTION CAPACITY DEPENDS ON APPLICABLE PRODCTS,MATERIAL,TENSILE STRENGTH OF THE WINR.
·THE KICK-OUT STROKE IN BRACKET SHOWS THE MAX. LENGTH OF THE PRODUCT ALLOWED FOR ROTATIONAL TRANSFER.

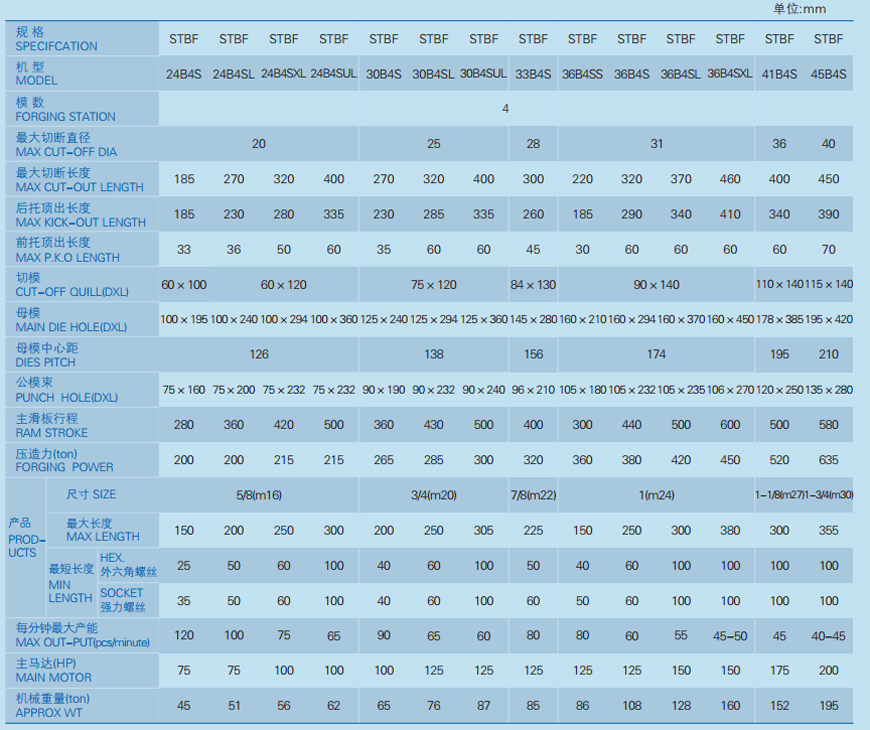

SPECIFICATION/MODEL			STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF
SPECIFICATION/MODEL			24B4S	24B4SL	24B4SXL	24B4SUL	30B4S	30B4SL	30B4SUL	30B4SULL	33B4S	36B4SS	36B4S	36B4SL	36B4SXL	41B4S	45B4S
FORGING STATION			4
CUT-OFF DIA.MAX.（mm)			20				25				28	31				36	40
CUT-OUT LENGTH MAX.（mm)			185	270	320	400	270	320	400	445	300	220	320	370	460	400	450
KICK-OUT LENGTH MAX.(mm)			185	230	280	335	230	285	335	370	260	185	290	340	410	340	390
P.K.O.LENGTH MAX.（mm)			33	36	50	60	35	60	60	70	45	30	60	60	60	60	70
CUT-OFF QUILL(D×L)(mm)			60×100	60×120	60×120	60×120	75×120				84×130	90×140				110×140	115×140
MAIN DIE HOLE (D×L (mm)			100×195	100×240	100×294	100×360	125×240	125×294	125×360	125×420	145×280	160×210	160×294	160×370	160×450	178×385	195×420
DIES PITCH(mm)			126				138				156	174				195	210
PUNCH HOLE (D×L)(mm)			75×160	75×200	75×232	75×232	90×190	90×232	90×240	90×290	96×210	105×180	105×232	105×235	106×270	120×250	135×280
RAM STROKE (mm)			280	360	420	500	360	430	500	580	400	300	440	500	600	500	580
FORGING POWER(ton)			200	200	215	215	265	285	300	320	320	360	380	420	450	520	635
PRODUCTS	SIZE		5/8(m16)				3/4(m20)				7/8(m22)	1(m24)				1-1/8(m27)	1-1/4(m30)
	MAX.LENGTH (mm)		150	200	250	300	200	250	305	360	225	150	250	300	380	300	355
	(mm)	SOCKET	35	50	60	100	40	60	100	100	60	50	60	100	100	100	100
MAX.OUTPUT(pcs/minute)			120	100	75	65	90	65	60	55	80	80	60	55	45-50	45	40-45
MAIN MOTOR(HP)			75	75	100	100	100	125	125	125	125	125	125	150	150	175	200
APPROX.WT.（ton)			45	51	56	62	65	76	87	82	85	86	108	128	160	152	195
·WE RESERVE THE RIGHT TO CHANGE THE DESIGNS & SPECIFICATIONS WITHOUT NOTICE.
·PRODUCTION CAPACITY DEPENDS ON APPLICABLE PRODCTS,MATERIAL,TENSILE STRENGTH OF THE WINR.
·THE KICK-OUT STROKE IN BRACKET SHOWS THE MAX. LENGTH OF THE PRODUCT ALLOWED FOR ROTATIONAL TRANSFER.
