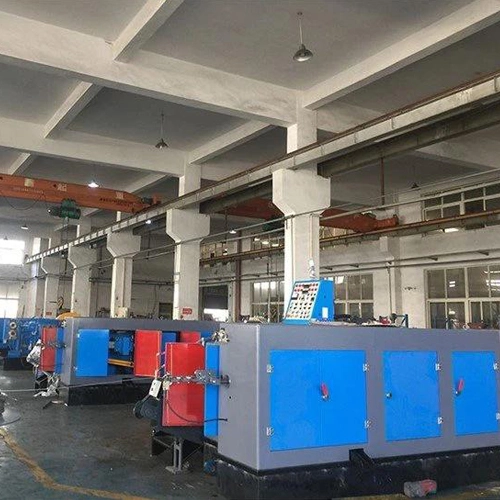

Five Die Five Blow Bolt Parts Forming Machine

The automatic bolt making machine can cold heading wire to make bolts, it have a wide range of bolts, nuts, nails, rivets and steel balls strength and many special shapes.

Description of Five Die Five Blow Bolt Parts Forming Machine

Products Feature:

The automatic bolt making machine can cold heading wire to make bolts, it have a wide range of bolts, nuts, nails, rivets and steel balls strength and many special shapes.

The raw materials of the automatic bolt making machine can be copper, aluminum, carbon steel, alloy steel, stainless steel and titanium alloy, and the material utilization rate can reach 80-90%. Cold heading is usually carried out on a special cold heading machine to realize continuous, multi position and automatic production.

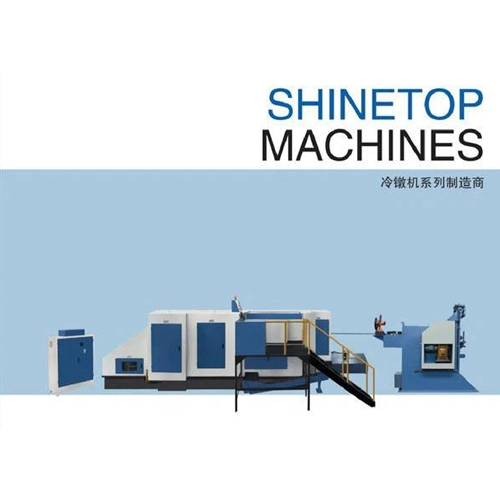

Shinetop 5 station series automatic bolt making machine:

STBF-24B5S, 30B5S, 33B5S, 36B5S, 41B5S, 45B5S

Parts length from 10mm to 355mm

Our Service:

● We can provide pictures and videos of the automatic bolt making machine during the producing process for the customers.

● Our experienced engineers can develop new machines according to the special needs of customers

● Our factory provide best after sales service to help customers solve problems of technology and operation.

● The standard safety device is guarantee the safe of operator and easy operations.

Our Advantage:

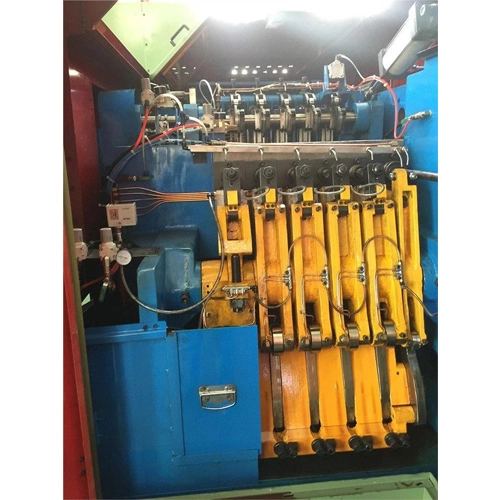

● Automatic bolt making machine adopt rotary pendulum clamp and equipped with pneumatic mechanism, smoothen the clamping stuff.

● High precision and high strength. Easy operation and stability.

● Only by change different mold, can produce different kinds of screws and bolts on the same bolt making machine.

Packing:

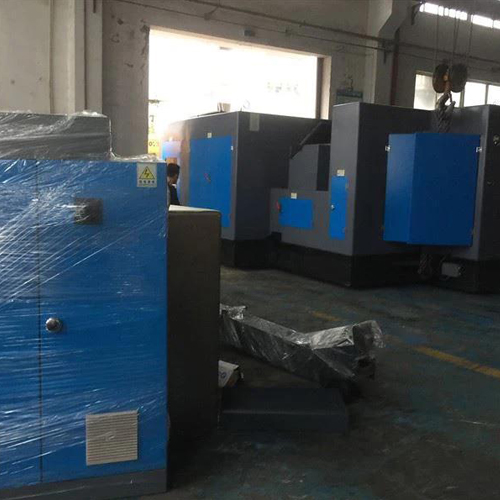

Seaworthy export standard packing

Packing of Five Die Five Blow Bolt Parts Forming Machine

FAQ：

Q: what is the size of product can be produced by 4station bolt making machine?

A: part size 3/16(m4) -1-1/4(m30). part length 10mm -355mm.

Q: Does the automatic bolt making machine have oil separator?

A: It is depend on the requirement of customers..

Q: Does the bolt making machine has counting meter?
A: Yes.

Price: The price is changing because of material cost and exchange rate. Please give me your contact information, I will update the newest price to you.

Hot Tags: automatic bolt making machine, China, suppliers, manufacturers, factory, customized, wholesale, buy, price, for sale, Drywall Screw Machine, Fasteners Manufacturing Machine, Bolt Making Machine, Bolt Maker Machine, High Speed Nail Making Machine, Bolt Former.

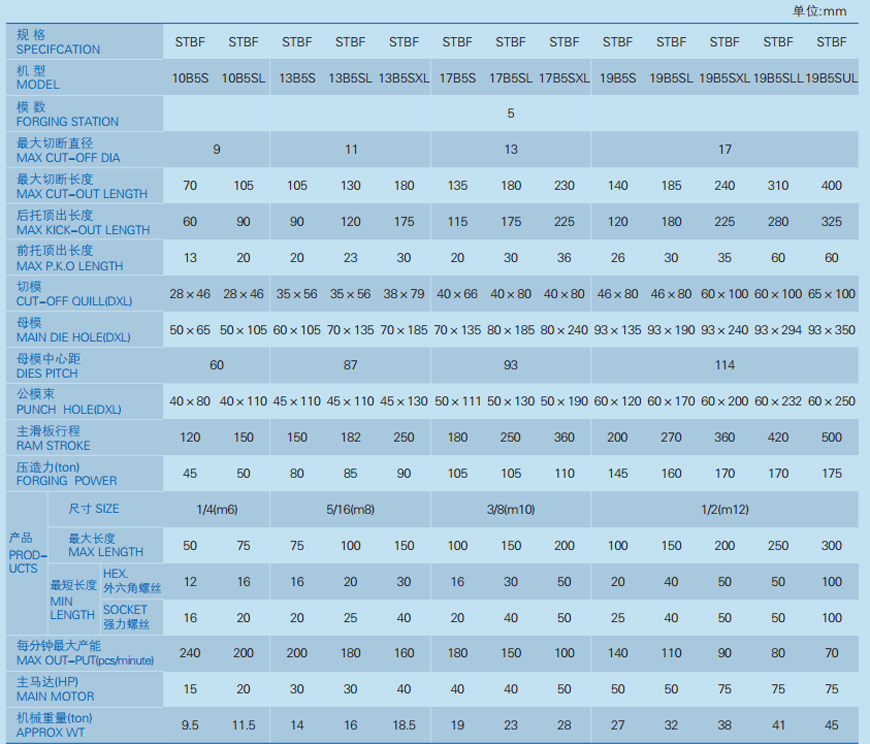

Five Die Five Blow Bolt Parts Forming Machine Specifcation

SPECIFICATION/MODEL			STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF
SPECIFICATION/MODEL			10B5S	10B5SL	13B5S	13B5SL	13B5SXL	17B5S	17B5SL	17B5SXL	19B5S	19B5SL	19B5SXL	19B5SLL	19B5SUL
FORGING STATION			5
CUT-OFF DIA.MAX.（mm)			9		11			13			17
CUT-OUT LENGTH MAX.（mm)			70	105	105	130	180	135	180	230	140	185	240	310	400
KICK-OUT LENGTH MAX.(mm)			60	90	90	120	175	115	175	225	120	180	225	280	325
P.K.O.LENGTH MAX.（mm)			13	20	20	23	30	20	30	36	26	30	35	60	60
CUT-OFF QUILL(D×L) (mm)			28×46	28×46	35×56	35×56	38×79	40×66	40×80	40×80	46×80	46×80	60×100	60×100	65×100
MAIN DIE HOLE (D×L(mm)			50×65	50×105	60×105	70×135	70×185	70×135	80×185	80×240	93×135	93×190	93×240	93×294	93×350
DIES PITCH(mm)			60		87			93			114
PUNCH HOLE (D×L)mm)			40×80	40×110	45×110	45×110	45×130	50×111	50×130	50×190	60×120	60×170	60×200	60×232	60×250
RAM STROKE (mm)			120	150	150	182	250	180	250	360	200	270	360	420	500
FORGING POWER(ton)			45	50	80	85	90	105	105	110	145	160	170	170	175
PRODUCTS	SIZE		1/4(m6)		5/16(m8)			3/8(m10)			1/2(m12)
	MAX.LENGTH (mm)		50	75	75	100	150	100	150	200	100	150	200	250	300
	MIN.LENGTH	HEX.	12	16	16	20	30	16	30	50	20	40	50	50	100
	(mm)	SOCKET	16	20	20	25	40	20	40	50	25	40	50	50	100
MAX.OUTPUT(pcs/minute)			240	200	200	180	160	180	150	100	140	110	90	80	70
MAIN MOTOR (HP)			15	20	30	30	40	40	40	50	50	50	75	75	75
APPROX.WT（ton)			9.5	11.5	14	16	18.5	19	23	28	27	32	38	41	45
·WE RESERVE THE RIGHT TO CHANGE THE DESIGNS & SPECIFICATIONS WITHOUT NOTICE.
·PRODUCTION CAPACITY DEPENDS ON APPLICABLE PRODCTS,MATERIAL,TENSILE STRENGTH OF THE WINR.
·THE KICK-OUT STROKE IN BRACKET SHOWS THE MAX. LENGTH OF THE PRODUCT ALLOWED FOR ROTATIONAL TRANSFER.

SPECIFICATION/MODEL			STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF	STBF
SPECIFICATION/MODEL			24B5S	24B5SL	24B5SXL	24B5SUL	30B5S	30B5SL	30B5SUL	33B5S	36B5S	36B5SL	41B5S	45B5S
FORGING STATION			5
CUT-OFF DIA.MAX.（mm)			20				25			28	31		36	40
CUT-OUT LENGTH MAX.（mm)			185	270	320	400	270	320	400	300	320	370	400	450
KICK-OUT LENGTH MAX.(mm)			185	230	280	335	230	285	335	260	290	340	340	390
P.K.O.LENGTH MAX.（mm)			33	36	60	60	35	60	60	45	60	60	60	70
CUT-OFF QUILL(D×L) (mm)			60×100	60×120	60×120	60×120	75×120			84×130	90×140	90×140	110×140	115×140
MAIN DIE HOLE (D×L (mm)			100×195	100×240	100×294	100×360	125×240	125×294	125×360	145×280	160×294	160×370	178×385	195×420
DIES PITCH (mm)			126				138			156	174		195	210
PUNCH HOLE (D×L) (mm)			75×160	75×200	75×232	75×232	90×190	90×232	90×240	96×210	105×232	105×232	120×250	135×280
RAM STROKE (mm)			280	360	420	500	360	430	500	400	440	500	500	580
FORGING POWER (ton)			230	230	250	250	320	340	360	350	440	480	630	700
PRODUCTS	SIZE		5/8（m16)				3/4(m20)			7/8(m22)	1(m124)		1&1/8(m27)	1&1/4(m30)
	MAX.LENGTH (mm)		150	200	250	300	200	250	305	225	250	300	300	355
	MIN.LENGTH	HEX.	25	50	60	100	40	60	100	50	60	100	100	100
	(mm)	SOCKET	35	50	60	100	60	60	100	60	60	100	100	100
MAX.OUTPUT(pcs/minute)			100	75	65	60	70	60	55	60	55	50	45	40
MAIN MOTOR (HP)			100	100	100	100	125	125	125	125	150	150	200	200
APPROX.WT.（ton)			52	58	63	69	73	85	97	100	126	146	180	225
·WE RESERVE THE RIGHT TO CHANGE THE DESIGNS & SPECIFICATIONS WITHOUT NOTICE.
·PRODUCTION CAPACITY DEPENDS ON APPLICABLE PRODCTS,MATERIAL,TENSILE STRENGTH OF THE WINR.
·THE KICK-OUT STROKE IN BRACKET SHOWS THE MAX. LENGTH OF THE PRODUCT ALLOWED FOR ROTATIONAL TRANSFER.
